Channel Type UV Disinfection

Protect Your Recipient Environments!

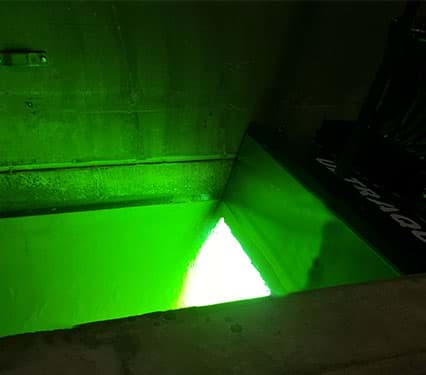

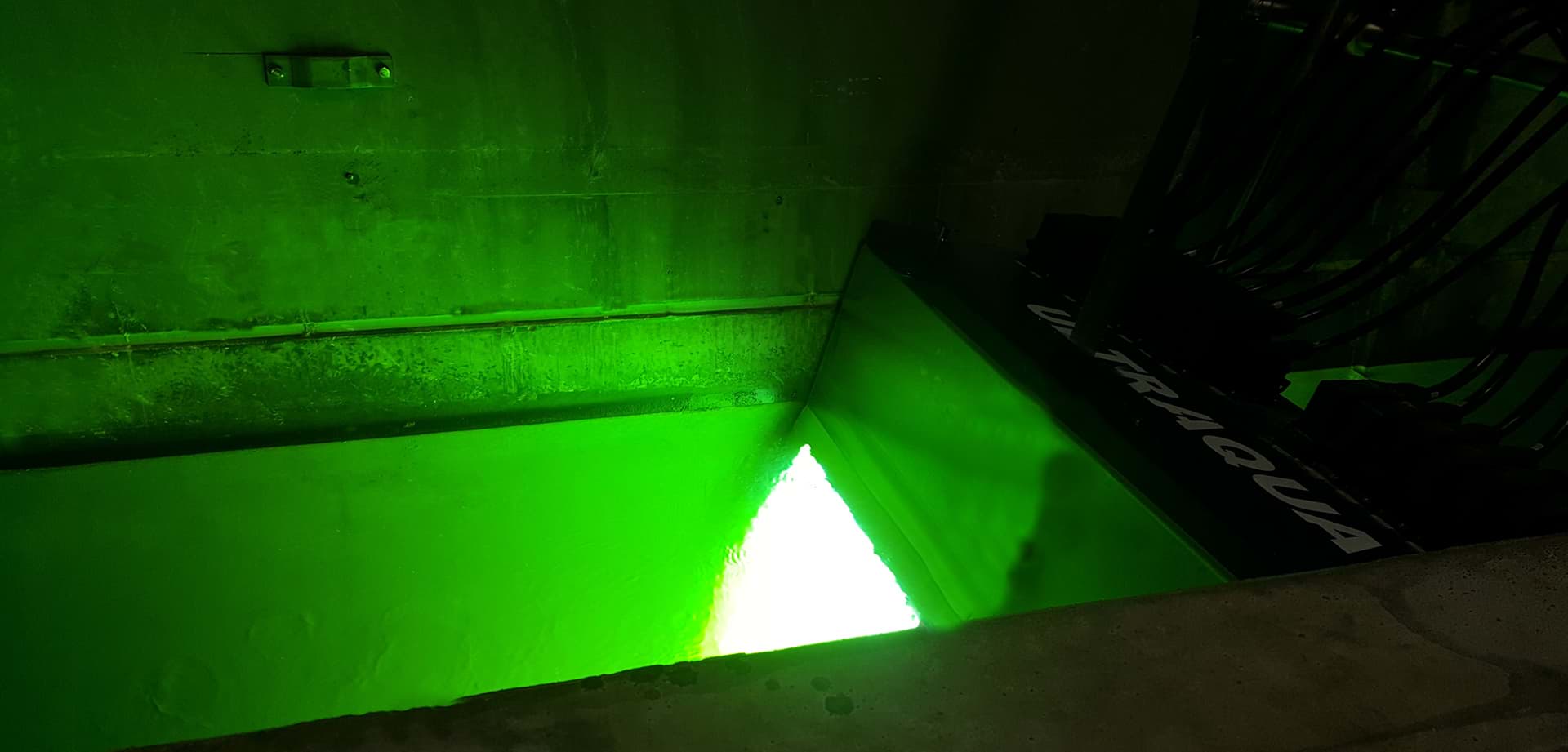

The Open Channel UV System series provides environmentally friendly and chemical-free disinfection for municipalities and industrial establishments. Stainless steel (SS) and polypropylene (PP) channel series are widely used in enterprises such as open channel system series, municipal wastewater treatment and large aquaculture systems. Open channel systems are available for vertical, inclined, and wall-mounted installations. It is the perfect solution for “post-installation” in existing chlorine contact tanks.

Specially designed lamp cassettes are modular. Thus, it can be modified to provide treatment at almost any flow rate. The SS/PP channel series is versatile, fits in a variety of duct depths and widths.

Back

It has a modular design and control system,
UV Systems can be remotely controlled by a central PLC system,
Unique UV system design provides water level variation up to 30 cm / 12 inches,
Regular maintenance work can be done while the UV System is in operation,
The design technology of Open Channel UV systems with hygienically insulated upper chamber provides easy access to all UV lamps,
Polypropylene or electropolished stainless steel AISI 316l construction,
It has easy installation, operation, and maintenance features,
Vertically mounted lamps are accessible during operation. There are no electrical components in contact with water,
No tools required for maintenance,
Provides continuous lamp performance / lifetime monitoring,
It has optional water level control and UVT sensor solution,
Can be used with standard or advanced controls,
Thanks to its high level of customization feature, it makes it possible to apply to the desired channel size,
There is an automatic lamp wiping system (While extending the life of the lamps, it also positively affects the disinfection performance),
It has hydraulic design optimized for CFD.
